6M Boom Length AC Motor Parking Lot Barrier Gate for Enhanced Parking Security

Brand Name : WEJOIN

Model Number : DZJ

Certification : CE ISO SGS

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 sets/month

Delivery Time : 12 working days after payment received

Packaging Details : carton

Boom Type : Straight boom, Folding boom, Fence Boom

Housing color : Orange

Application : parking lot

Speed : 3s,6s

Boom length : Max 6M

Arm material : Aluminum alloy

Contact Now

Advanced Technology Car Park Barrier Gate with AC Motor and 6s Operating Time for Parking Security



Automatic Barrier Functions and Features

1. The barrier gate's boom operates with exceptional balance, thanks to the motor transmission system that utilizes cranks and shafts. This mechanical design not only ensures smooth movement but also minimizes vibrations during operation, extending the lifespan of the components. The balanced operation reduces wear and tear, contributing to the long - term reliability and stability of the barrier gate.

2. The barrier gate can be conveniently operated using a remote control. This remote - control functionality offers users the flexibility to open and close the gate from a distance, enhancing the convenience of access control. Whether for security personnel or authorized vehicle owners, the remote control allows for easy management of the gate, improving the overall efficiency of the access control system.

3. When the boom encounters an obstruction, it will automatically reverse, a safety feature that is exclusive to barrier gates equipped with a digital limit device. This auto - reverse function helps prevent damage to vehicles, pedestrians, and the barrier gate itself. By immediately reversing upon contact with an obstacle, it ensures a high level of safety in the access control area.

4. The barrier gate is highly compatible with car parking system equipment, enabling integration through wire control. However, it is crucial to note that the control signal must be a dry contact signal. This well - integrated design allows for a unified management system, where the barrier gate can be coordinated with other parking system components such as ticket dispensers, payment terminals, and access card readers.


Boom Barrier Technical Data

Maximum Straight Boom Length

3s/4.5m, 6s/6m

Open/Close Time

3s, 6s

Voltage

AC220V

Frequency

60HZ

Working Temperature

-35°C~60°C

Housing Dimension

335*285*925mm

MTBF

2,500,000 times

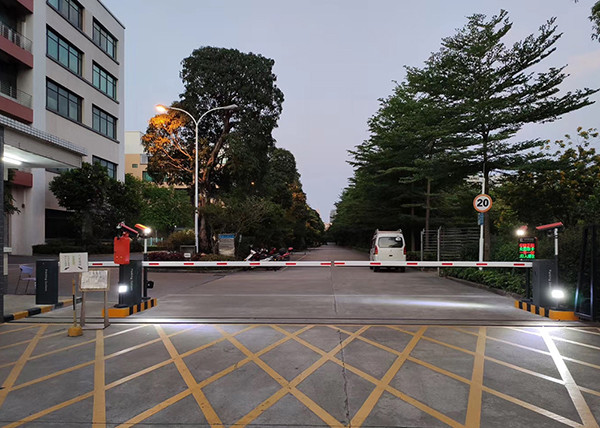

Parking Barrier Gate Applications

Public Transportation Stations – Used in bus terminals, subway stations, and train stations to regulate vehicle access.

Highway Toll Gates – Installed at expressway entrances and exits to manage toll collection and traffic flow.

High-End Residential Communities – Ensures secure entry and exit for residents while preventing unauthorized access.

Commercial Parking Lots – Deployed in shopping malls, office buildings, and hotels to control vehicle movement and optimize space usage.

Corporate & Institutional Facilities – Implemented in government buildings, hospitals, schools, and business parks to enhance security and parking management.
