Brand Name : WEJOIN
Model Number : DZE-BL
Certification : CE ISO SGS
Place of Origin : CHINA
MOQ : 1 set
Price : negociate
Payment Terms : T/T
Supply Ability : 10000 sets/month
Delivery Time : 7 working days
Packaging Details : carton
operating time : 1.5s~6s
boom type : straight folding fencing
housing material : steel with powder coating
Color : gold, black
Application : parking lot
Warranty : 1 Year
High-Performance Motor Drive Parking Barrier Gate with Straight Boom for Parking Lot Entrance and Exit Control Systems
Automatic Barrier Gate Brief Introduction
The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used in parking lot entrance and exit control systems.
This product is divided into three types: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.
Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC100~264V
3. Controller input voltage: DC24V±10%, 7.5A
4. Motor power: 180W
5. Relative humidity: 30%~80%, no condensation
6. Distance of remote control: open and undisturbed, L≤50M
7. Running speed: 1.5~6 seconds adjustable
8. MTBF: 3,000,000 times
Boom Barrier Basic Features:
1. DC24V brushless motor, equipped with connecting rod transmission mechanism and balance spring, low power consumption, high efficiency, and lower noise.
2.With auto-reversing on obstruction function and delay auto-closing function, support counting function and motorcade passing mode.
3. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. DC24V power supply is optional.
Model | WJDZE-BL (speed 1.5~6s adjustable) | |||||||
Running Speed | 1.5s | 3s | 4s | 5/6s | 6s | 6s | 6s | 6s |
Boom-Type | Straight | Straight | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
Max Boom Length | 3m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m |
Input Voltage | AC100~264V | |||||||
Frequency | 50/60HZ | |||||||
Motor Voltage | DC24V | |||||||
Enclosure Rating | Ip54 | |||||||
Working Temperature | -35℃~ + 70℃ | |||||||
MTBF | 3,000,000 times | |||||||
Max Motor Power | 180W | |||||||
Max Motor Speed | 24r/min |
![]() |

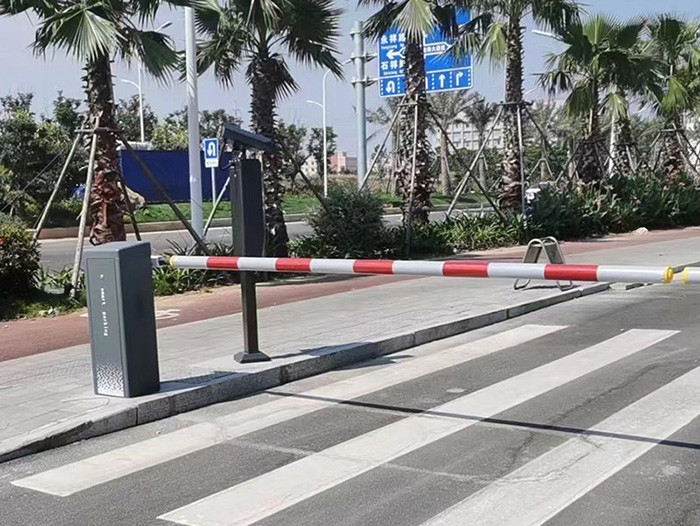

Flexible Straight Boom Parking Barrier Gate for Parking Lot Entrance and Exit Control Systems Images |
